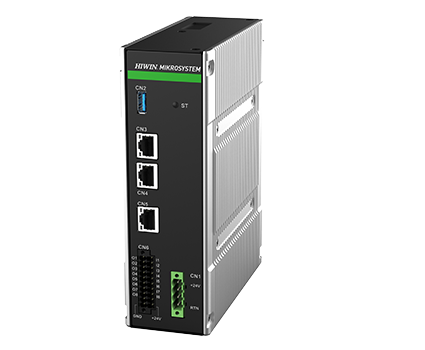

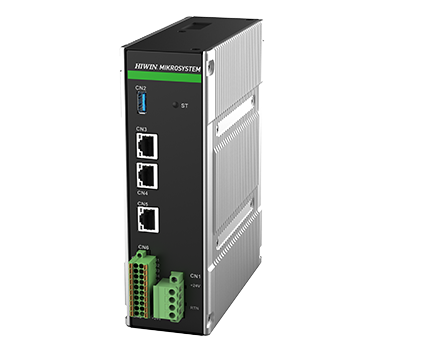

Multi-axis motion control master with versatile programming capabilities for demanding industrial applications. Users can use HMPL (HIWIN Motion Programming Language) or API Libraries (C/C++/C#/Python/LabVIEW) to develop their high-level applications.

• Control up to 16 fully synchronized axes and connect to 32 slave devices
• 250 µs minimum of controller cycle time
• 10/100/1000 Mbps TCP/IP host communication
• Support CANopen over EtherCAT (CoE) Fieldbus communication
• Multi-task HMPL programming with maximum 64 user tasks
• API library supported for C, C++, C#, Python, and LabVIEW host programming
• Support Modbus TCP, and ASCII TCP communication
• CE/UL approvals
