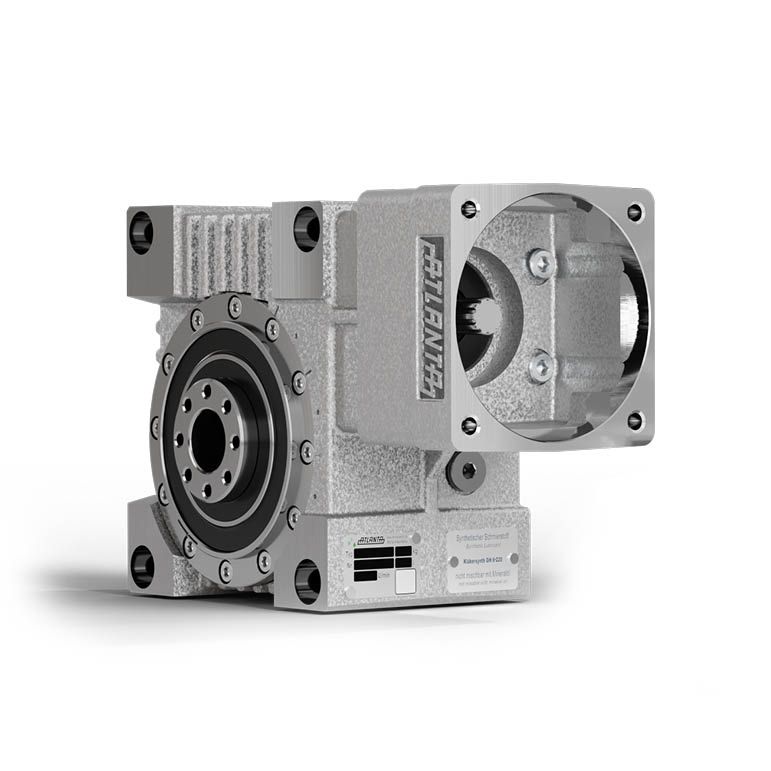

ATLANTA HT-High Torque Servo Worm Gearboxes have been specially developed for use with the latest three-phase and DC servo-motors.

The following are typical features of our HT-Servo Worm Gearboxes:

• Backlash: <1 arcmin, adjustable
• 4 sizes: centre distance 50, 63, 80 and 100mm
• 8 ratios: 4.75; 6.75; 9.25; 14.5; 19.5; 29; 39; 50 and 52:1
• Output torque: from 90 to 1700 Nm
• Output hollow shaft:
  • • Interface according EN ISO 9409-1-A
    • clamp connection

  generously dimensioned and supported for high additional forces

• Highest rigidity
• Highest precision
• ATEX design available
