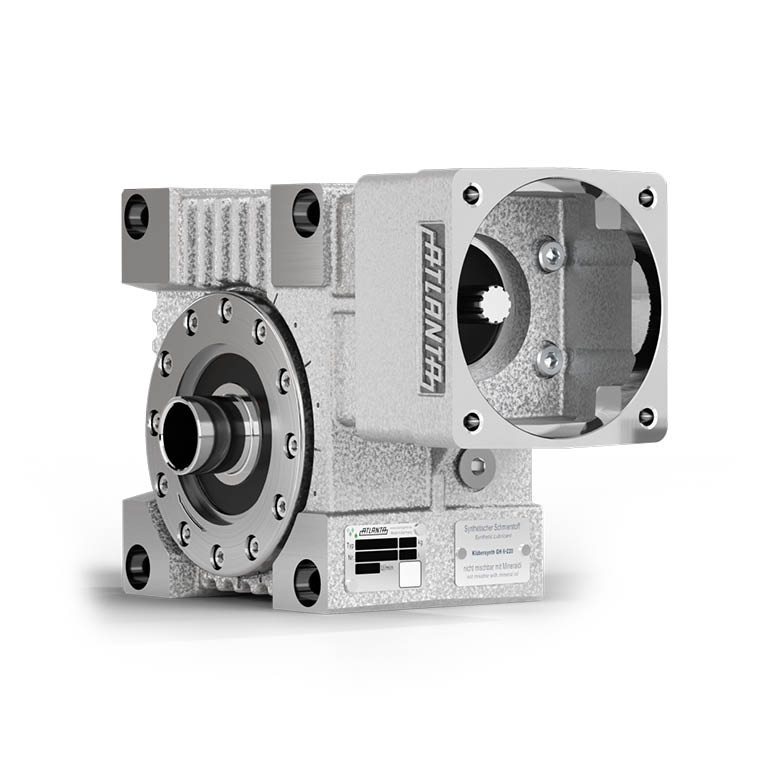

ATLANTA HP-High Performance Servo Worm Gearboxes have been specially developed for use with the latest three-phase and DC servo-motors.

The following are typical features of our HP-Servo Worm Gearboxes:

• Backlash: <2 arcmin, adjustable
• 5 sizes: centre distance 50, 63, 80, 100 and 125mm
• 8 ratios: 4.75; 6.75; 9.25; 14.5; 19.5; 29; 39; 50 and 52:1
• Output torque: from 60 to 2200 Nm
• Output hollow shaft:
  • • key connection
    • clamp connection

  generously dimensioned and supported for high additional forces

• Very high rigidity
• Very high precision
• ATEX design available
